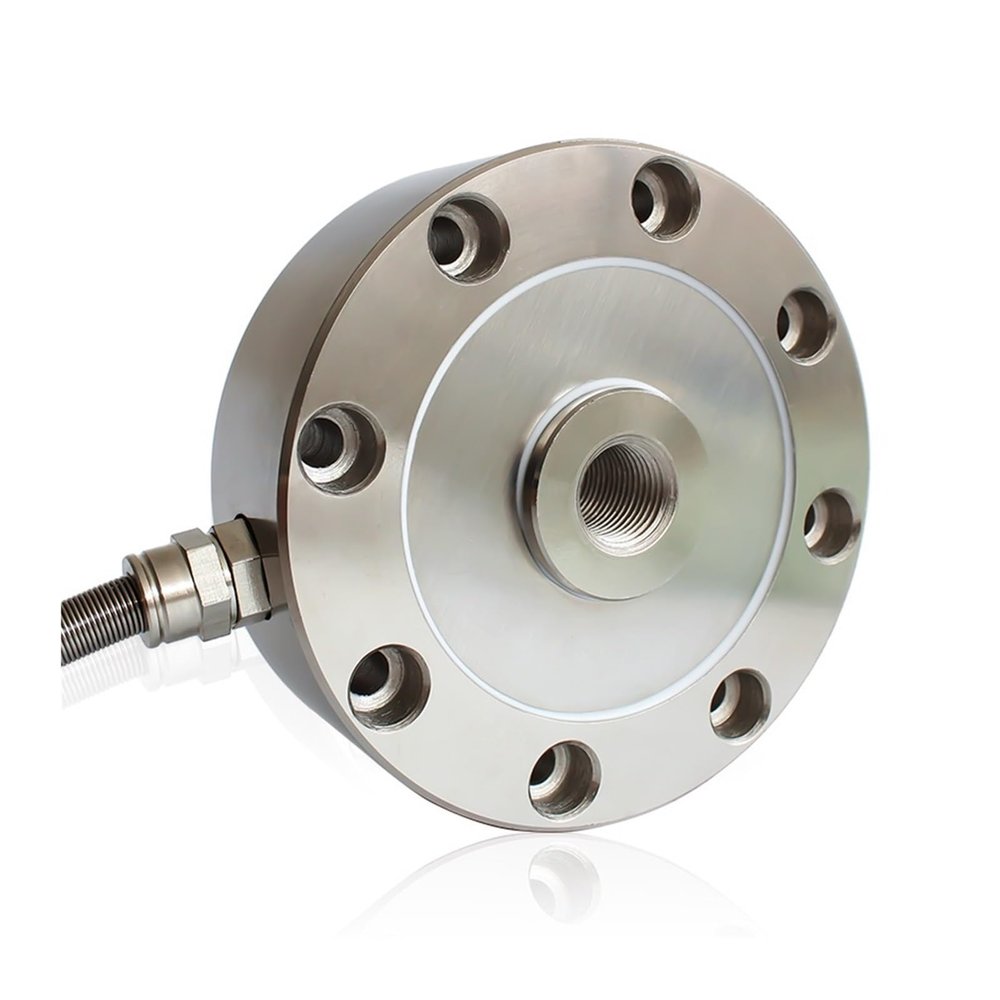

Spoke Load Cell, Donut-Type Compression Sensor, 1 T

Description

• Made of alloy steel or stainless steel
• Suitable for belt scales, hopper scales, and other weighing equipment
• Good steel performance and high accuracy
• High accuracy, strong stability, dust-resistant sealing, and a wide measuring range
• Suitable for force measurement in industrial systems, mainly for industrial automation measurement and control systems measuring tension and compression, as well as other weighing and force-measurement applications

Product Description Sensitivity: 2.0 0.1 mV/V Hysteresis: 0.03% FS Nonlinearity: 0.05% FS Relative creep over 30 minutes: 0.05% FS Temperature effect on sensitivity: 0.03% FS/10C Temperature effect on zero signal: 0.03% FS/10C Zero output: 1.0% FS Input resistance: 380 30 Output resistance: 350 2 Insulation resistance: >5000 M Operating temperature range: -20 to +60C Limited safe load: 120% FS Reference excitation voltage: 512 V Material: Alloy steel or stainless steel (custom-made to order) Protection rating: IP66 (IP67 for stainless steel) Connection type: Input+: Red Input: Black Output+: Green Output: White
