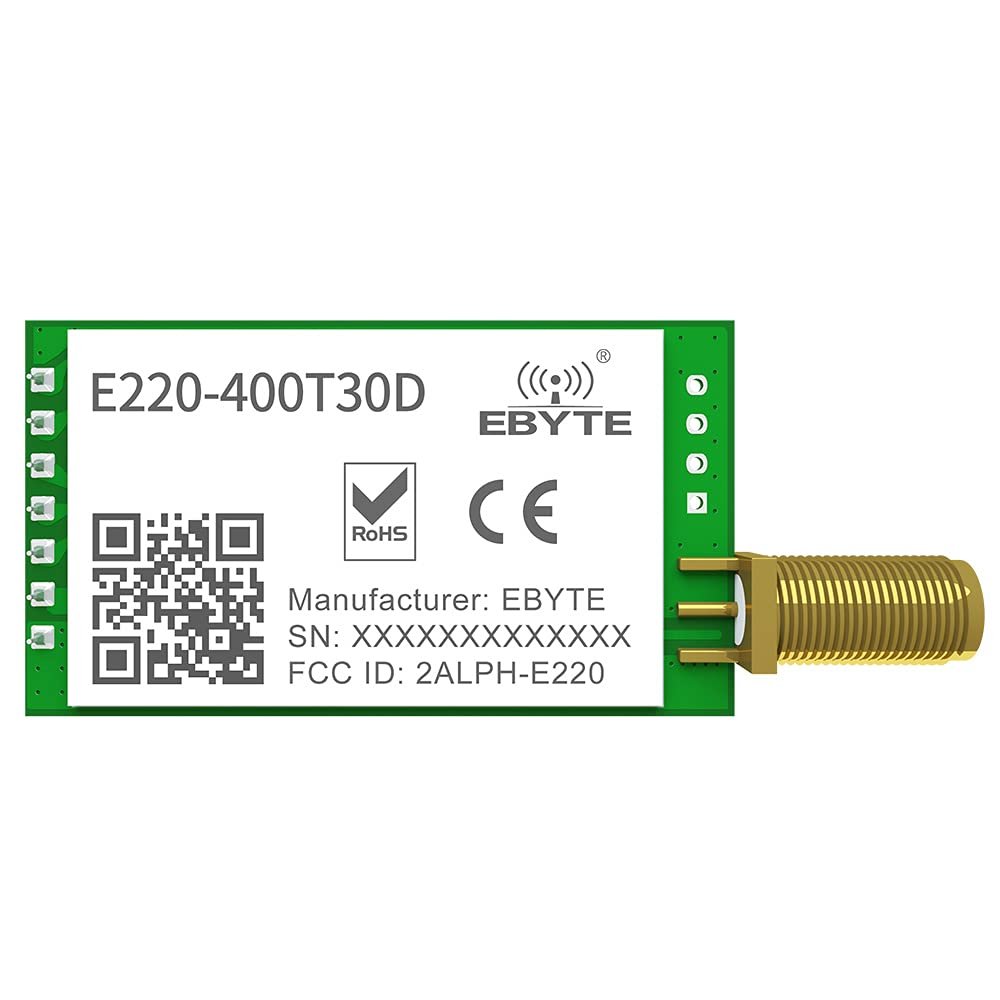

EBYTE E220-400T30D LLCC68 LoRa UART Serial Module, 433/470 MHz, 30 dBm

Description

• IC: LLCC68; frequency: 410.125493.125 MHz, default 433.125 MHz
• 30 dBm transmission power; stated range up to 10 km; size: 24 43 mm
• LoRa spread-spectrum wireless UART module with TTL-level output, compatible with 3.3 V and 5 V I/O
• Supports air wake-up, carrier sensing, communication keys, adjustable sub-packet length, point-to-point and broadcast transmission
• Bit rates from 2.4 Kbps to 62.5 Kbps; 3.05.5 V power supply; SMA antenna interface
• Industrial-grade design for long-term use from -40 to +85 C
• Applications include home security, smart home and industrial sensors, building automation, industrial remote control, AMI, and automotive applications

The E220-400T30D is a wireless UART serial port module based on the LLCC68 and a new-generation LoRa spread-spectrum technology. It supports frequencies from 410.125 to 493.125 MHz, with 433.125 MHz as the default, and provides TTL-level output compatible with 3.3 V and 5 V I/O voltage. Features include user-configurable communication keys, LBT channel monitoring before transmission, RSSI signal-strength indication, air wake-up, point-to-point and broadcast transmission, channel sensing, and deep sleep with approximately 5 A total device consumption. The module includes an integrated PA and LNA. Parameters are retained after power-off, and the module resumes operation using the configured settings after power-on. A watchdog automatically restarts the module after an exception and continues operation with the previous parameter settings. EBYTE also offers customized development services.
