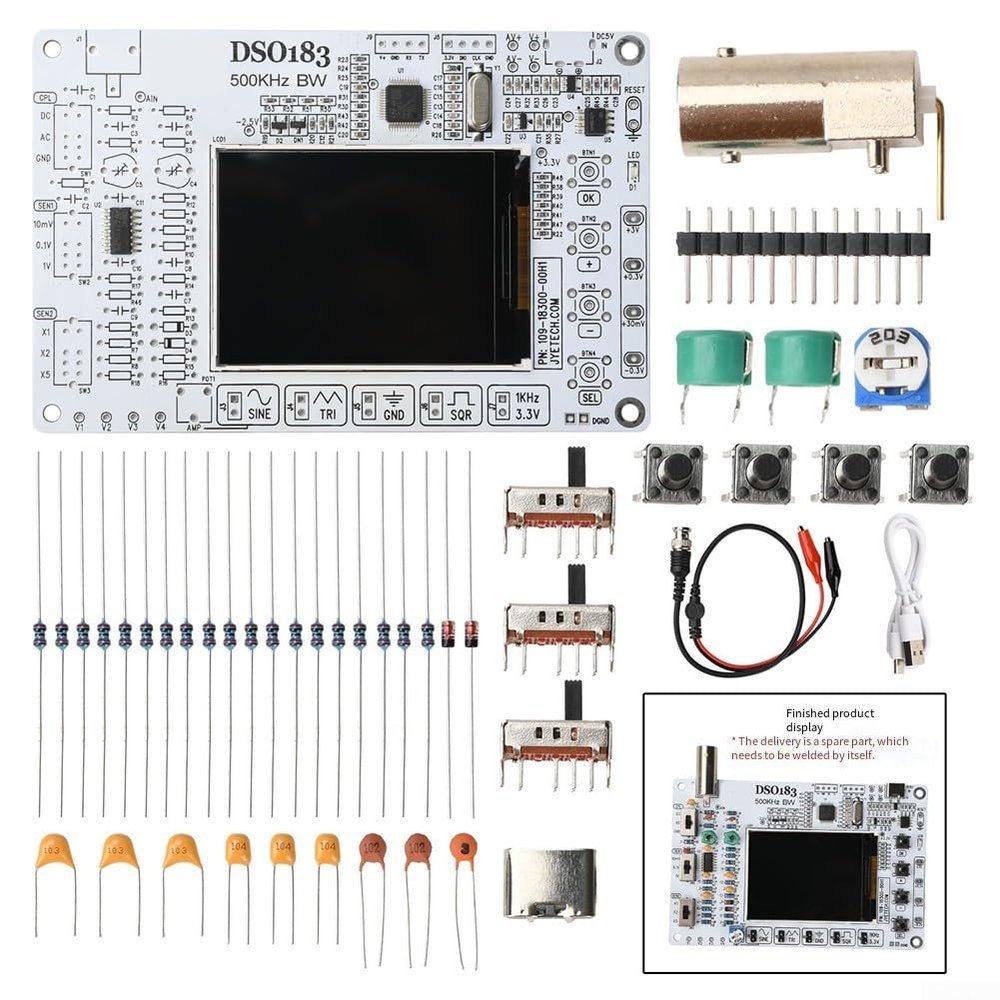

DSO183 5 V Digital Oscilloscope Kit with Signal Generator, 500 kHz, 1.5 MS/s

Description

• Compact single-board design for easy installation in various experimental environments.
• Built-in signal generator with waveform outputs including sine and triangle waves.
• Waveform storage and quick recall for comparison, analysis, and reuse.
• 500 kHz bandwidth for capturing complex signal details.
• Easy to use for learning electronics and exploring circuits.

Features: 1. Single-board design: Compact integrated structure, easy installation, and high stability for various experimental environments. 2. Built-in signal generator: Integrated waveform output functions, including sine and triangle waves, meet various testing requirements. 3. Waveform storage and recall: Supports waveform storage and quick recall for easier comparison, analysis, and reuse. 4. 500 kHz bandwidth: High-frequency response enables accurate capture of complex signal details. 5. A useful tool for electronics enthusiasts: Easy to use and powerful, it helps users learn electronics and explore circuits. Specifications: Part name: DC 5 V DSO183 digital oscilloscope Material: ABS plastic Color: As shown Bandwidth: 500 kHz ADC resolution: 12-bit Real-time sampling rate: 1.5 MS/s Waveform buffer length: 1,024 points Vertical sensitivity range: 10 mV/div to 5 V/div Input impedance: 1 M Maximum input voltage: 50 Vpk Coupling: DC, AC, GND Horizontal time-base range: 1 s/div to 500 s/div Trigger modes: Auto, Normal, Single Trigger edge: 1 s/div to 500 s/div Power supply: DC 5 V via Type-C Power consumption: <100 mA Dimensions: 118 76 12 mm Package contents: A: 1 DSO183 digital oscilloscope DIY parts kit B: 1 component housing
