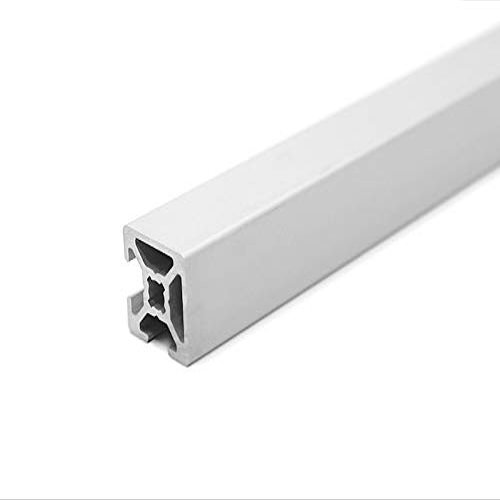

Design Aluminum Profile 20x20L, 2 Concealed Grooves, 90° B-Type Groove 6, Silver Anodized, 1790 mm

Description

• Design aluminum profile 20x20L with 2 concealed grooves
• 90 B-type, groove 6, light version
• Silver anodized finish
• Profile dimensions: 20 20 mm
• Length: 1790 mm

Design profile / lightweight aluminum profile 20x20, B-type groove 6, 2 grooves, 90, silver anodized. Designation System: BSP - B-type Groove: 6 Grid: 20 Dimensions: 20 20 mm Version: Light Preload: 0.2 mm +0.1/-0.15 Groove width: 6.0 +0.3 mm Core bore: 5.5 +0.2/-0.1 mm Surface Anodizing: E6Ev1, 1015 m Contact areas removed Standards and compliance Tolerances: EN 12020-2 REACH: Yes RoHS / RoHS 2: Yes Dodd-Frank: Yes Mechanical properties Designation: EN 572-3, EN-AW 6063 T66 Condition: EN 515 T66 Rp0.2 [N/mm]: 200 Rm [N/mm]: 245 A [%]: 8 A50 [%]: 6 Hardness [HB]: 80 Area calculation Area [mm]: 183.3 Outer contour perimeter [mm]: 114.9 Centroid: X [mm]: 9.92 Y [mm]: 9.92 Area moments of inertia Second moment, horizontal IX [mm]: 7597 Second moment, vertical IY [mm]: 7597 Section modulus: WX max [mm]: 798.6 WX min [mm]: 724.5 WY max [mm]: 798.6 WY min [mm]: 724.5 Nominal weight, approximately [kg/m]: 0.497
