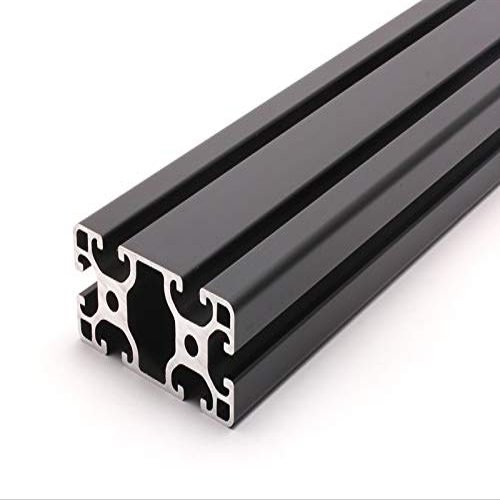

Black Aluminum Profile 40x80L, I-Type Slot 8, Light, 2390 mm

Description

• Black aluminum profile 40x80L with I-type slot 8
• Light version
• Mounting system profile, 2390 mm length
• Material: EN-AW 6063
• Anodized surface: E6Ev1, 1015 m
• Usable length: 6000 or 6030 mm, +0/10 mm

Black aluminum profile 40x80L with I-type slot 8, light version. Color: Black Properties: - Slot: 8 - Version: Light - Preload: 0.2 mm +0.1/0.15 mm - Slot dimension: 8.0 +0.4 mm - Core bore: 6.8 0.2 mm - Usable length: 6000 or 6030 mm, +0/10 mm - Surface: Anodized, E6Ev1, 1015 m - Anodizing contact area: Removed - Finish: Mill finish Mechanical properties: - Designation: EN 572-3 | EN-AW 6063 - Temper: EN 515 | T66 - Rp0.2: N/mm | 200 - Rm: N/mm | 245 - A: % | 8 - A50: % | 6 - Hardness: HB | 80 Section properties: - Area: 1156.1 mm - Outer contour perimeter: 520.0 mm - Centroid: X 39.99 mm; Y 20.00 mm - Area moment of inertia, horizontal 2nd degree (IX): 171398 mm - Area moment of inertia, vertical 2nd degree (IY): 700383 mm - Section modulus, WX max/min: 8569.5 mm - Section modulus, WY max/min: 17509.9 mm - Nominal weight: approx. 3.133 kg/m
