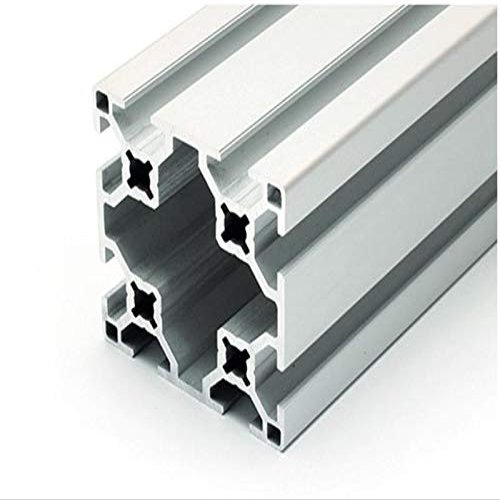

60x60L Aluminum Profile, T-Slot 8, Light, Silver Anodized, 780 mm

Description

• 60 x 60 mm light aluminum profile, B-type, T-slot 8
• Silver anodized finish, E6/EV1, 1015 m
• Corrosion protection provided by the anodized coating
• Mechanical properties: Rp0.2 200 N/mm, Rm 245 N/mm, hardness HB 80
• Available lengths from 50 mm to 2,000 mm

60x60L aluminum profile with T-slot 8 in the light version. Properties: - Slot: T-slot 8 - Version: Light - Preload: 0.2 mm +0.1/-0.15 mm - Slot dimension: 8.0 +0.3 mm - Core hole: 6.8 0.2 mm for tapping Surface: - Anodizing: E6/EV1, 1015 m - Anodized contact areas: removed Mechanical properties: - Designation: EN 572-3 | EN-AW 6063 - Temper: EN 515 | T66 - Rp0.2: 200 N/mm - Rm: 245 N/mm - A: 8% - A50: 6% - Hardness: HB 80 Section properties: - Area: 952.1 mm - Outer contour perimeter: 468.9 mm - Centroid: X 30.0 mm, Y 30.0 mm - Second moment of area, horizontal Ix: 370,420.0 mm - Second moment of area, vertical Iy: 370,420.0 mm - Section modulus, Wx max/min: 12,347.3 mm - Section modulus, Wy max/min: 12,347.3 mm - Nominal weight: approximately 2.580 kg/m
